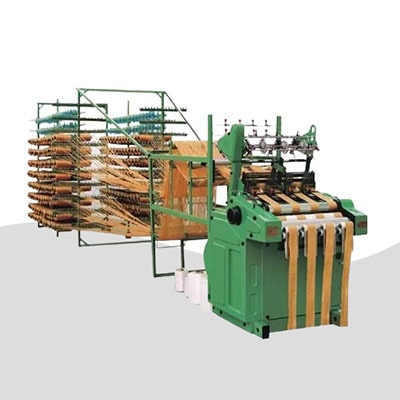

Needle Loom Machine

Versatile Applications of Needle Loom Machines Across Industries

Garment Industry
Elastic Tapes	Webbing Belts	Bra and Lingerie Straps	Shoe Laces	Hook and Loop Fasteners (Velcro)
Footwear Industry
Elastic Bands	Heel Loops and Pull Tabs	Webbing for Straps	Shoe Laces	Binding Tapes for Edges
Luggage Industry
Straps and Handles	Webbing for Compression Straps	Luggage Belts	Luggage ID and Tags	Reflective Strips
Defence Industry
Tactical Webbing and Straps	Parachute Harnesses and Webbing	Body Armor and Ballistic Vests	Weapon Slings	Helmets and Chin Straps
Agricultural Industry
Harvesting and Lifting Straps	Tree Ties and Support Straps	Leash	Seedling Bands and Plant Ties	Erosion Control Fabrics

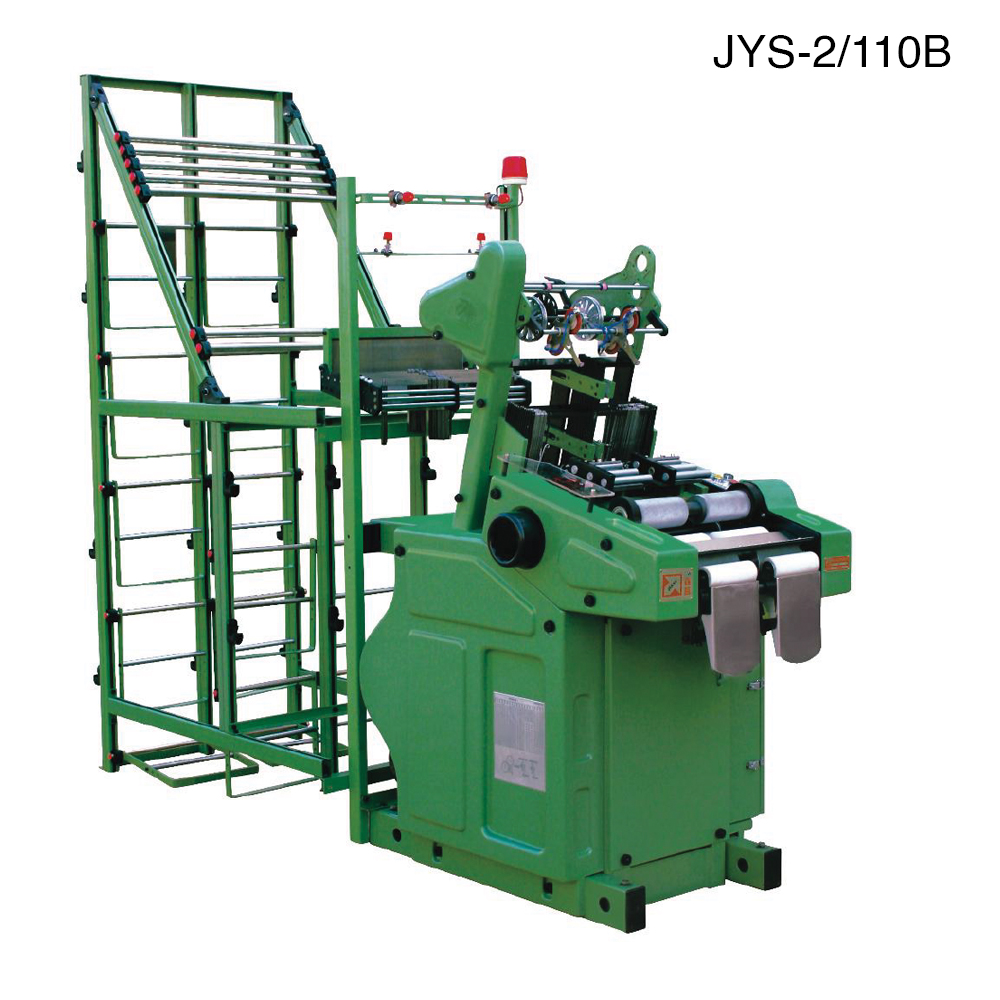

JYS Series

The JYS series of needle looms are expertly designed to weave various types of heavy from PP flat film, cotton, nylon, and high of heavy polyester yarn materials, These machines are the ideal equipment for producing FIBC webbing slings, army belts, safety belts, cargo lifting slings, heavy elastic straps for sofas, cotton niwar, and span polyester heavy belts.

Built for Durability and Convenience :

The JYS series needle looms are engineered to deliver high-quality finished products with exceptional reliability. Their robust design ensures they can handle extra heavy-duty functions with ease, providing stable production and requiring minimal maintenance. These machines are built to withstand the demands of heavy-duty applications while offering convenience and efficiency.

Applications :

JYS series needle looms are versatile and capable of producing a wide range of heavy belts and webbing, including:

• FIBC webbing slings

• Cargo lifting slings

• Freight lashing

• Safety belts

• Climbing belts

• Military belts

Features

• Sturdy Design Structure: Engineered with a robust frame to ensure durability and longevity.

• Low Vibration and Noise: Operates smoothly with minimal vibration and noise, enhancing the working environment.

• Extremely Low Maintenance Cost: Designed for ease of maintenance, reducing downtime and operational costs.

JYS Series Models

The JYS series needle looms stand out as the most reliable and efficient solution for producing various heavy webbing products. Their advanced design and features ensure they meet the highest standards of quality and performance in the industry.

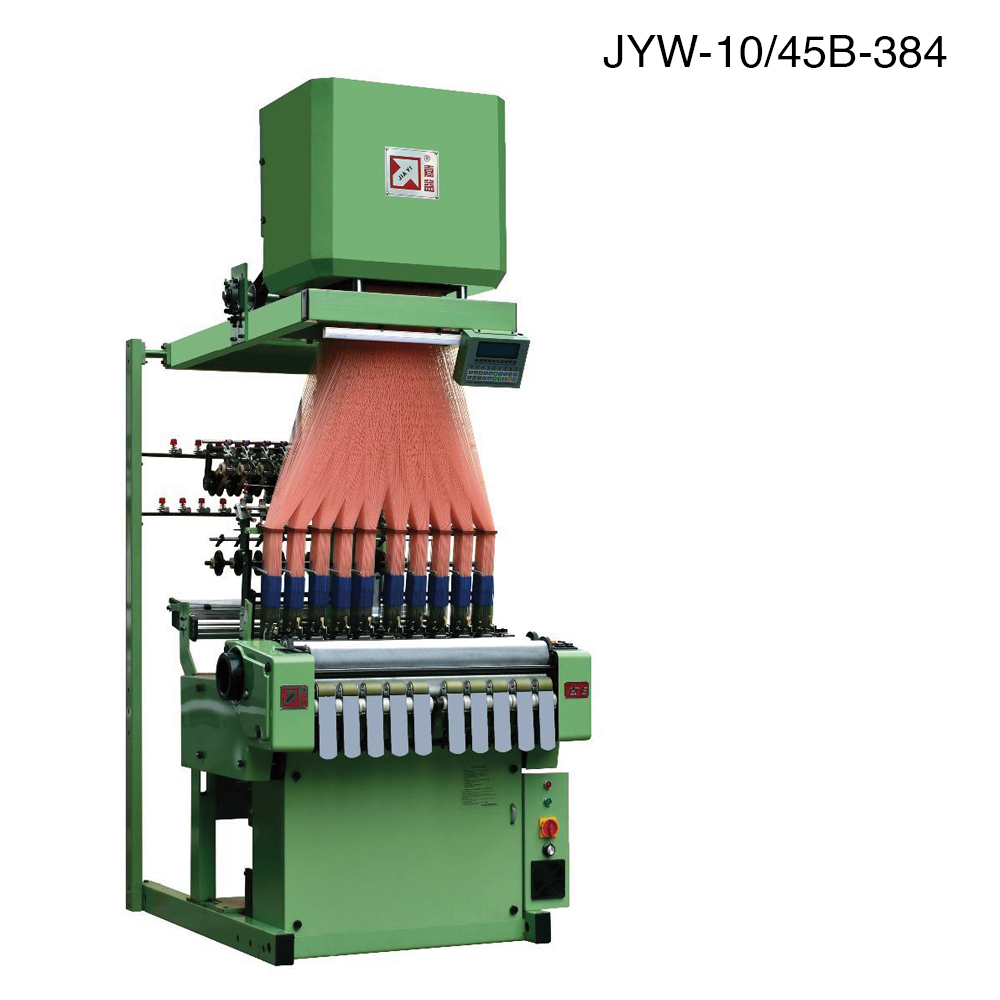

JYW Series

The JYW series needle looms are designed to manufacture a wide variety of narrow fabrics, including webbing tapes, curtain tapes, elastic tapes, belts, and more. These machines are perfect for producing high-quality, diverse textile products efficiently and reliably.

Faster and More Convenient

The JYW series needle looms are engineered to deliver high-quality finished products at high speeds, with low noise and minimal maintenance costs. Their user-friendly operation ensures reliable product output and higher production rates, making them an excellent choice for any manufacturing setup.

Applications

JYW series needle looms can produce a wide range of narrow fabrics, including:

• Webbing tapes

• Twill tapes

• Curtain tapes

• Elastic tapes

• Surgical elastic

Features

• Double Shedding Lever System: Equipped with an advanced double shedding lever system for improved weaving efficiency.

• Stable Structure: Designed with a stable structure to minimize vibration and ensure smooth operation.

• Low Vibration and Noise: Operates with low vibration and noise levels, enhancing the working environment.

• Extremely Low Maintenance Cost: Requires minimal maintenance, reducing downtime and operational expenses.

JYW Series Models

The JYW series needle looms offer the perfect combination of speed, reliability, and ease of use, making them ideal for producing a variety of high-quality narrow fabrics. Their advanced features and robust design ensure exceptional performance and long-term durability.

JYZ Series

The JYZ series High-Speed Needle Looms represent the latest innovation from our company, designed to meet the demands for both speed and quality in tape manufacturing. These advanced machines are capable of weaving various light tapes from cotton and synthetic materials, including zipper tapes, binding tapes, grosgrain ribbons, satin ribbons, and rattail cords (Malai Dori).

Faster, High-Quality, and Convenient

JYZ series needle looms are engineered for high-speed operation, delivering exceptionally high-quality finished products. Ideal for industries requiring high production rates, these machines are easy to operate and ensure reliable, top-tier output. They operate at very high speeds with low noise and minimal maintenance costs, making them an efficient and economical choice.

Applications :

The JYZ series needle looms can weave a variety of light tapes from cotton, nylon, and polyester materials, such as:

• Zipper tapes

• Binding tapes

• Cotton tapes

• Satin ribbons

• Grosgrain ribbons

• Fiberglass insulation tapes

• Rattail cords (Malai Dori)

Features

• Fine Selvage: Designed to provide a neat and smooth selvage on finished products.

• High speed : Operates at very high speeds for maximum production efficiency.

• Low Noise : Functions quietly, contributing to a better working environment.

• Ease of operation : Simple to operate, allowing for ease of use and minimal training requirements.

• Convenient Maintenance :Engineered for easy maintenance  , ensuring long - term reliability and reducing downtime.

JYZ Series Models

Models	Number of Ribbons	Width of Read	Weft Density	Number of Frame	Cycle pattern Chain	Speed	Weight Net/Gross	Motor Power	Belt Width
JYZ 12/20	12	20 mm	3.5-36.7/mm	12	1:48	1700	435/535 Kg	1.1KW	20 mm
JYZ 10/27	10	27 mm	3.5-36.7/mm	12	1:48	1700	435/535 Kg	1.1KW	27 mm
JYZ 8/35	8	35 mm	3.5-36.7/mm	12	1:48	1700	435/535 Kg	1.1KW	35 mm
JYZ 6/55	6	55 mm	3.5-36.7/mm	12	1:48	1700	435/535 Kg	1.1KW	55 mm
JYZ 4/80	4	80 mm	3.5-36.7/mm	12	1:48	1700	435/535 Kg	1.1KW	80 mm

The JYZ series needle looms are the perfect blend of speed, quality, and convenience, making them the ideal choice for manufacturers looking to produce a wide range of high-quality light tapes efficiently and reliably.

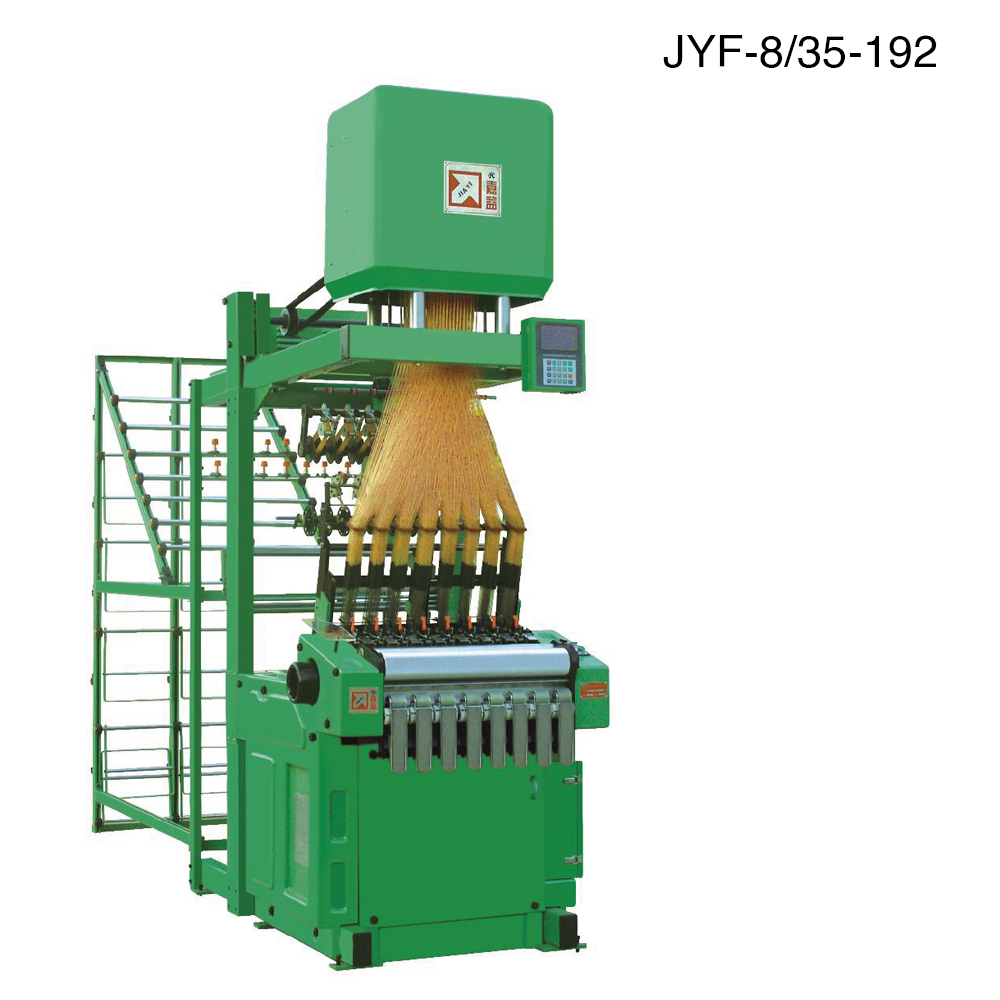

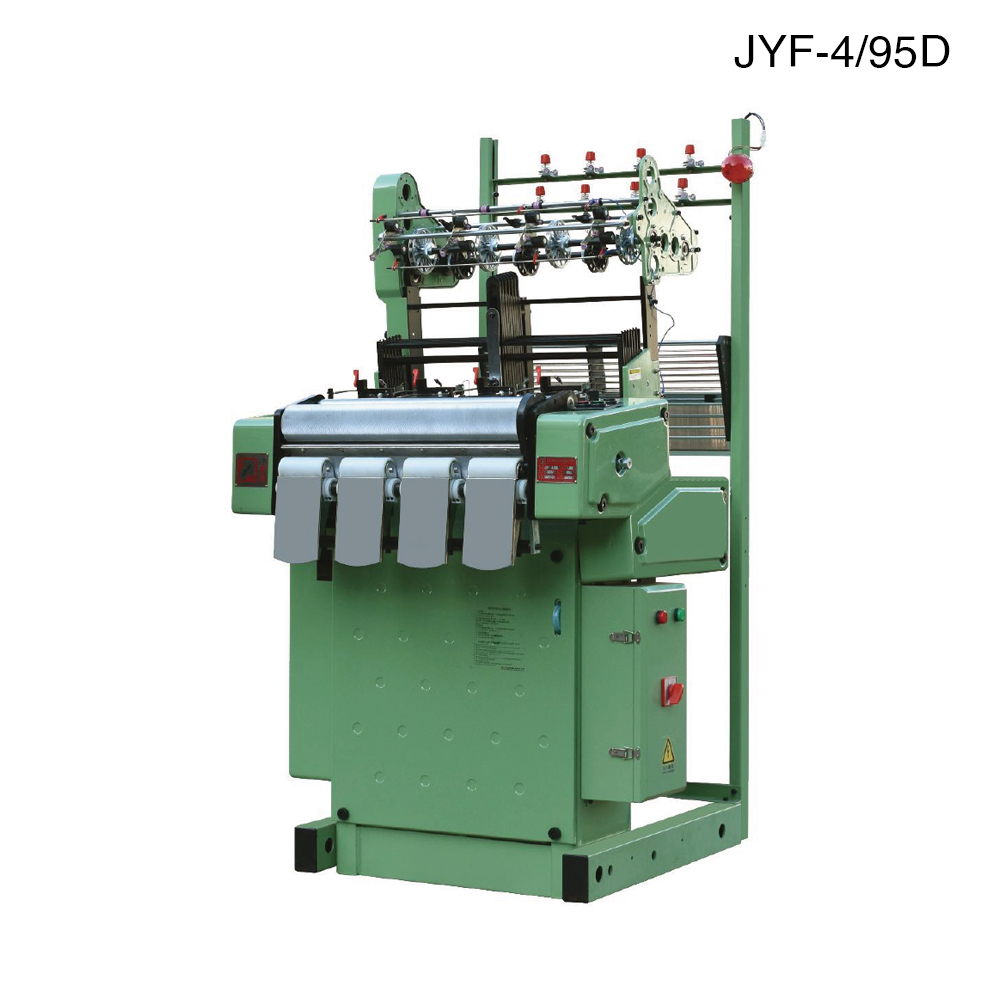

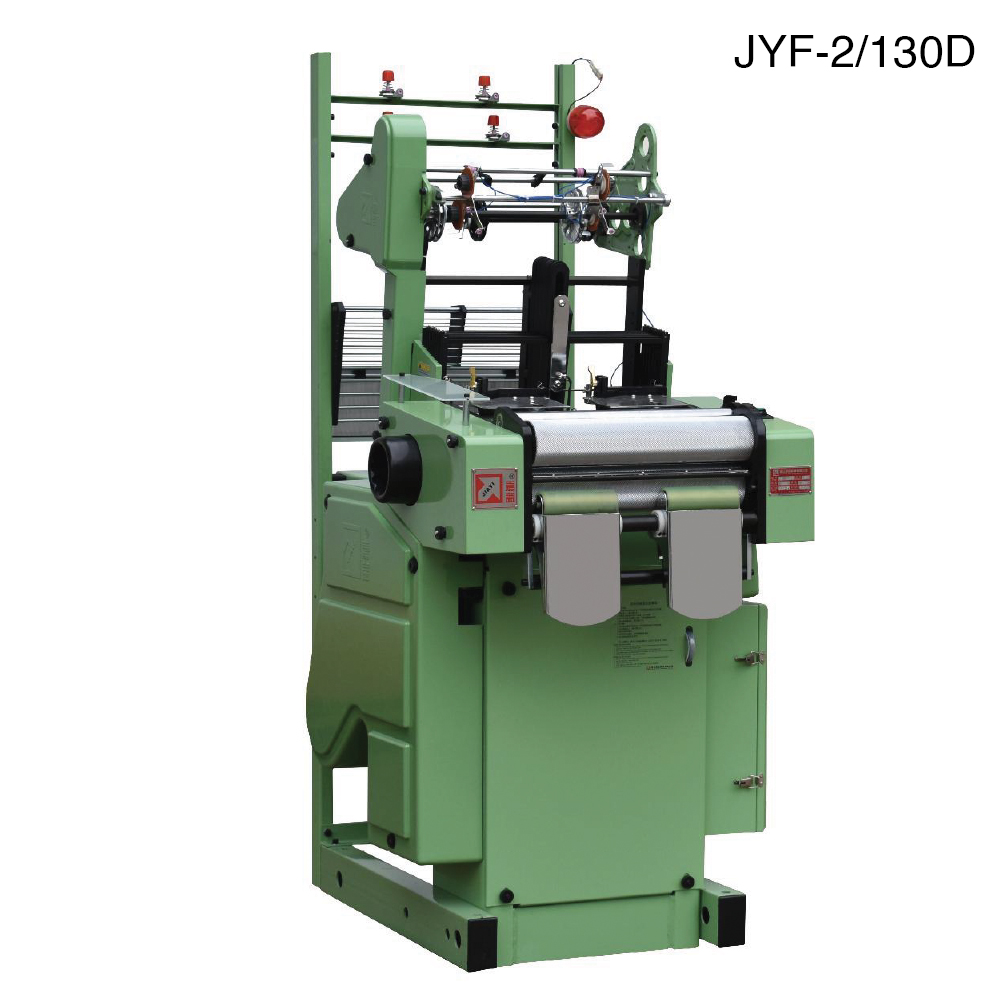

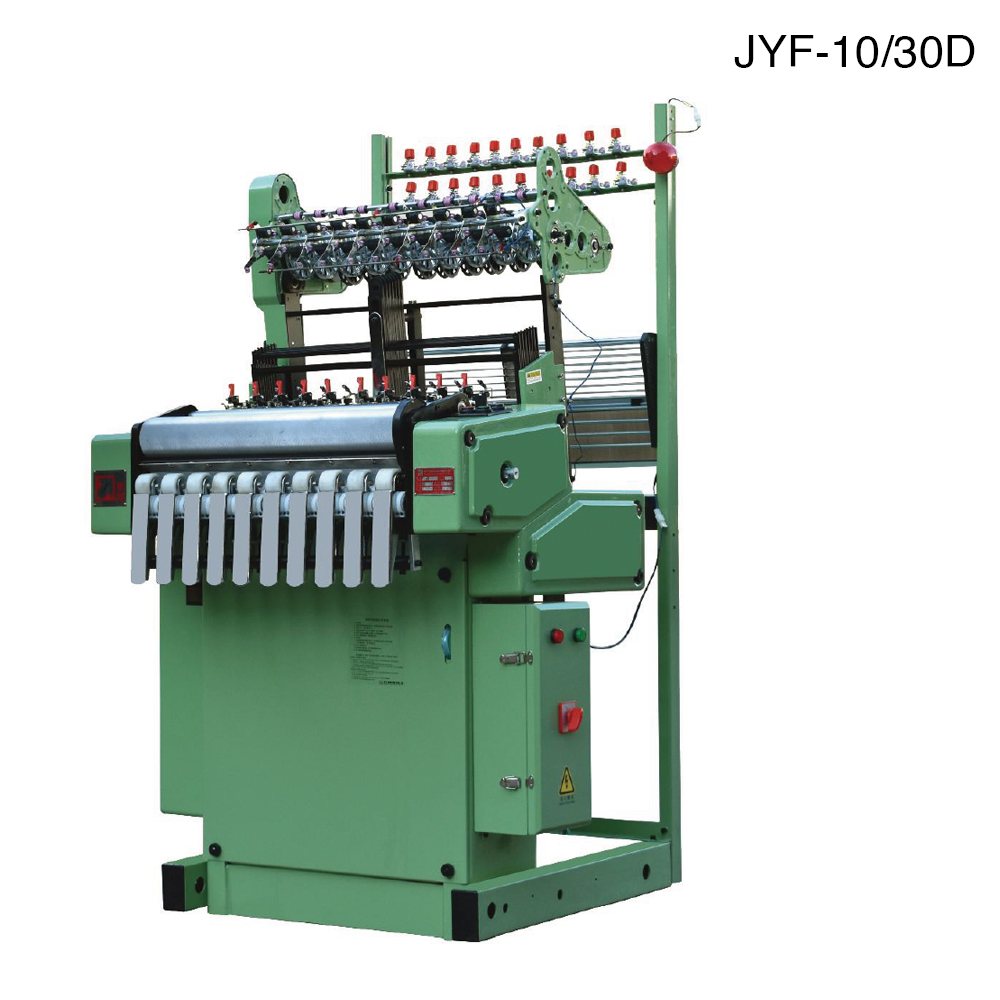

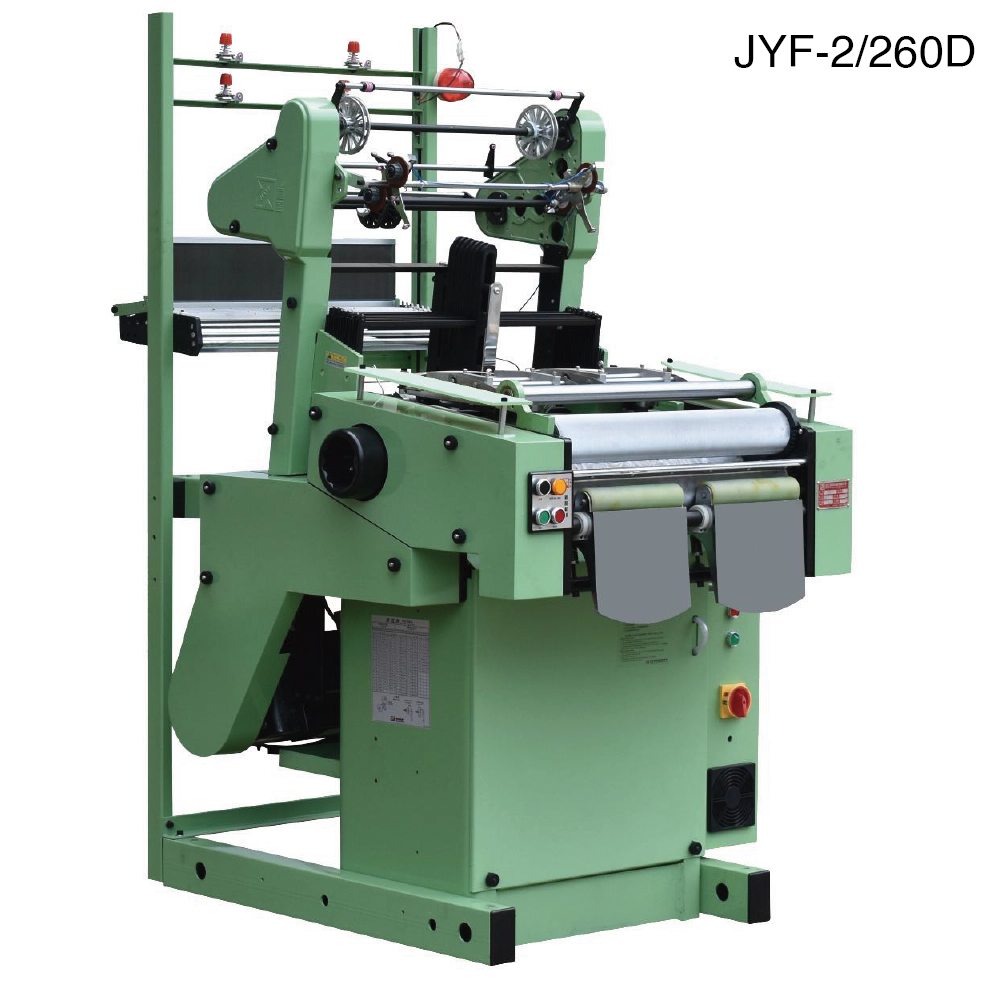

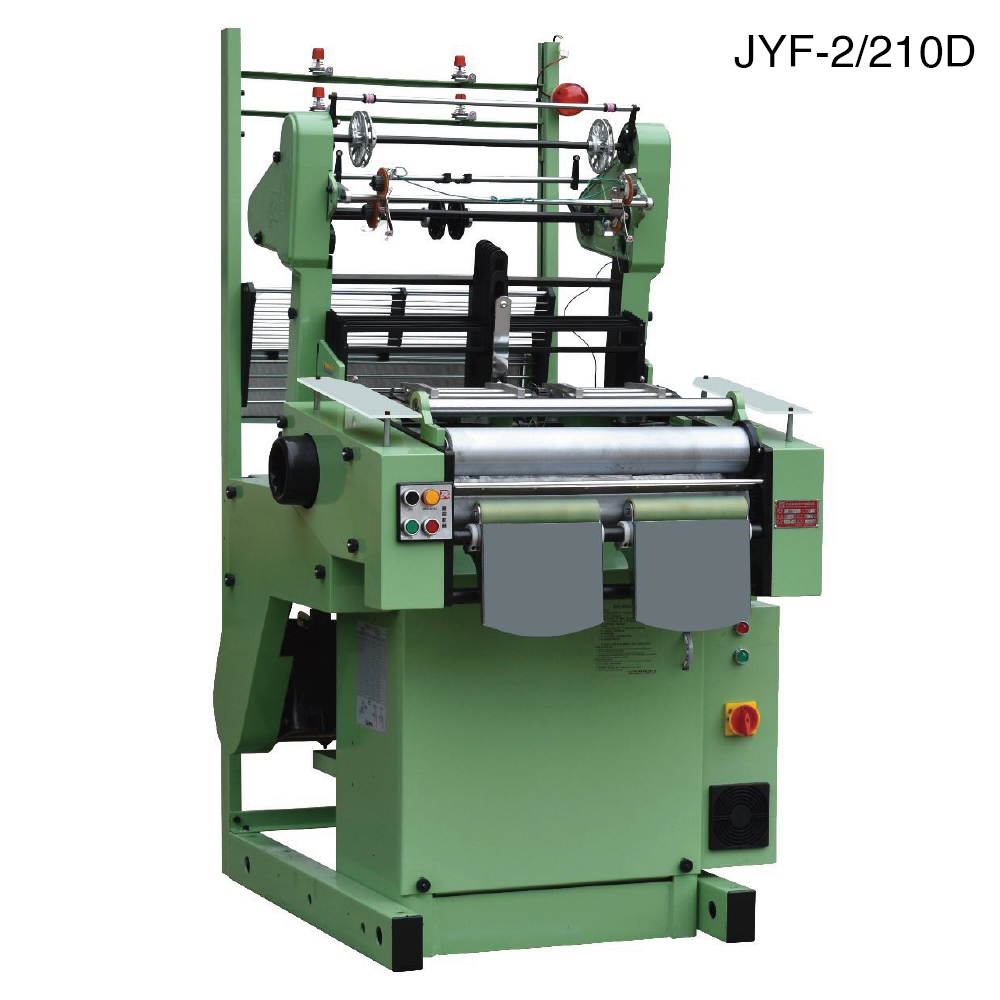

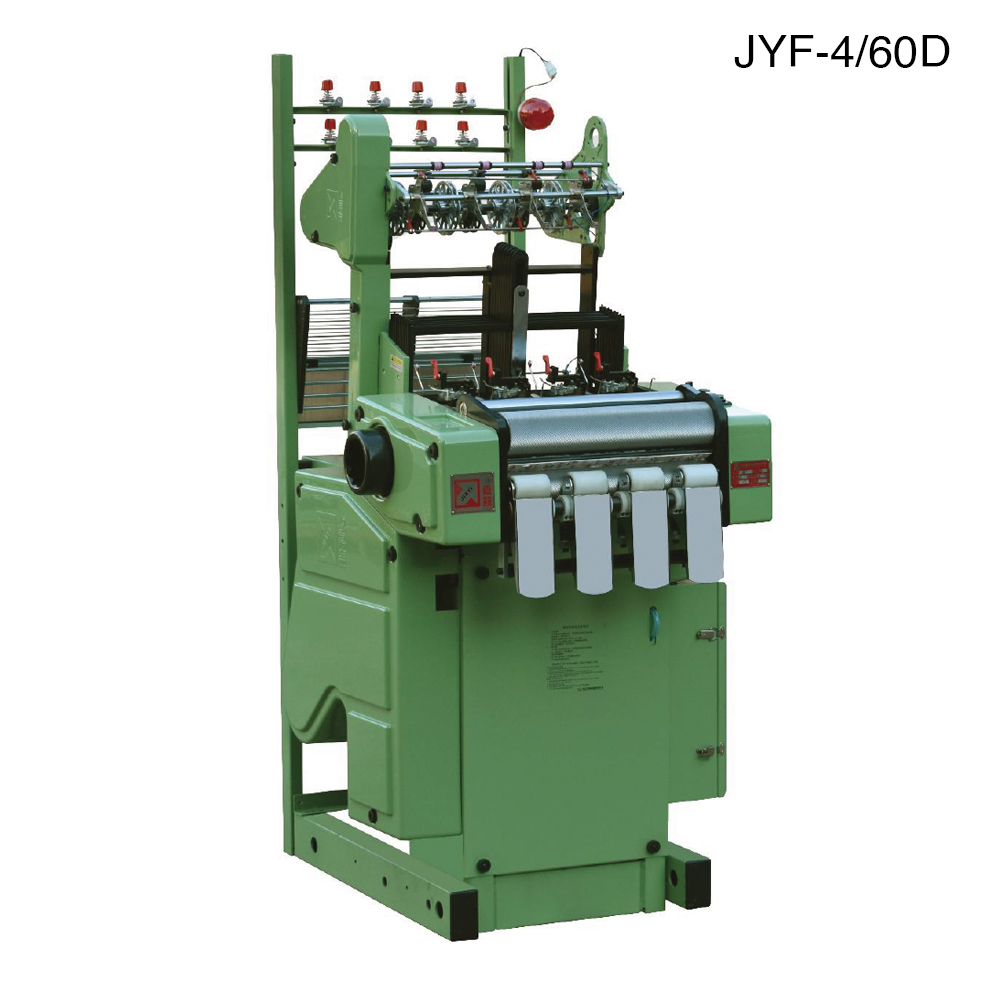

JYF & JYP Series

To meet the market's growing demands, the JYF series fabric needle looms are designed to cater to various weaving needs. These machines offer concurrent weaving capabilities from 2 to 10 lines, accommodating widths from as narrow as 3 mm to as wide as 210 mm, and various thicknesses from gauze tapes to heavy tapes. Customized widths are available to match the specific requirements of factories and products, ensuring seamless integration and optimal performance.

High-Quality, Durable Construction

The JYF series looms are constructed from precision-processed materials, ensuring they are solid, practical, and durable for year-round service. These machines are engineered for low depreciation, providing long-lasting performance and high economic efficiency for clients.

Advanced Features for Enhanced Performance

• Automatic Lubrication and Tension Feeding: The automatic lubrication device and automatic tension feeding system ensure effective control over fabric quality while saving time and labor for the user.

• Stabilized Transmission: The use of drive belts and change gears enables stabilized transmission of the bottom weft, accommodating a wider range of superior quality fabrics.

• Versatile Machine Parts: Convertible machine parts, supported by various devices, allow for the production of a diverse range of fabrics, meeting multiple requirements with a single machine.

• Reinforced Design for Wide Machines: For machines with an 880mm width, the healed frame features a double-load, double-shedding lever, twin pattern chain transmission, and reinforced shaft and gear configurations.




The JYF series needle looms are designed to deliver precision, durability, and versatility, making them the ideal choice for clients seeking high-quality fabric production with efficient and reliable performance.

For Needle Loom Machines:

• Q) Which Brand Machines are you dealing in ?
• Q) How many tapes can I make in this model ?
• Q) What is the Production ?
• Q) My sample is of this particular size, suggest me the best model ?
• Q) What is the maximum speed of your needle loom machines ?
• Q) Can I make elastic tape in this machine ?
• Q) How big size can I get from this needle loom machine ?
• Q) How many machines do I need to start my setup ?
• Q) Do I need to buy back take off and other attachments too ?
• Q) What is the purpose of having a Rubber feeder ?
• Q) How much time will you take to deliver the machine ?
• Q) Where can I get the spare parts ?
• Q) Who will install the machine ?
• Q) What will be after sale support, will I get any ?
• Q) Do you sell any special type of needle loom machines also ?
• Q) How many needle loom machine models do you deal in ?
• Q) Where can I find an operator who can run machines because I am new in this field ?
• Q) Where will I find the yarn for the needle loom machine ?
• Q) Why should I buy your machine instead of others ?
• Q) How to get my customized name on tape ?
• Q) Do you sell second hand machines too ?
• Q) Tell me some of the companies who are using your machines ?
• Q) Will Cotton yarn work on this machine ?
• Q) Can I use Jute to make jute ropes ?
• Q) What is the power utilization in your needle loom machines ?
• Q) Can I get a 3-Phase connection machine ?
• Q) Can I get a single phase connection machine ?
• Q) Where is the company ?
• Q) Do you make machines in house ?
• Q) Can I buy your machine from some other dealer ?
• Q) Can you provide me with customers also ?
• Q) I want to start a new setup. Tell me everything I am new in this industry ?
• Q) How to fill bobbins in Needle Loom machines?
• Q) Do you provide machines to fill bobbins ?

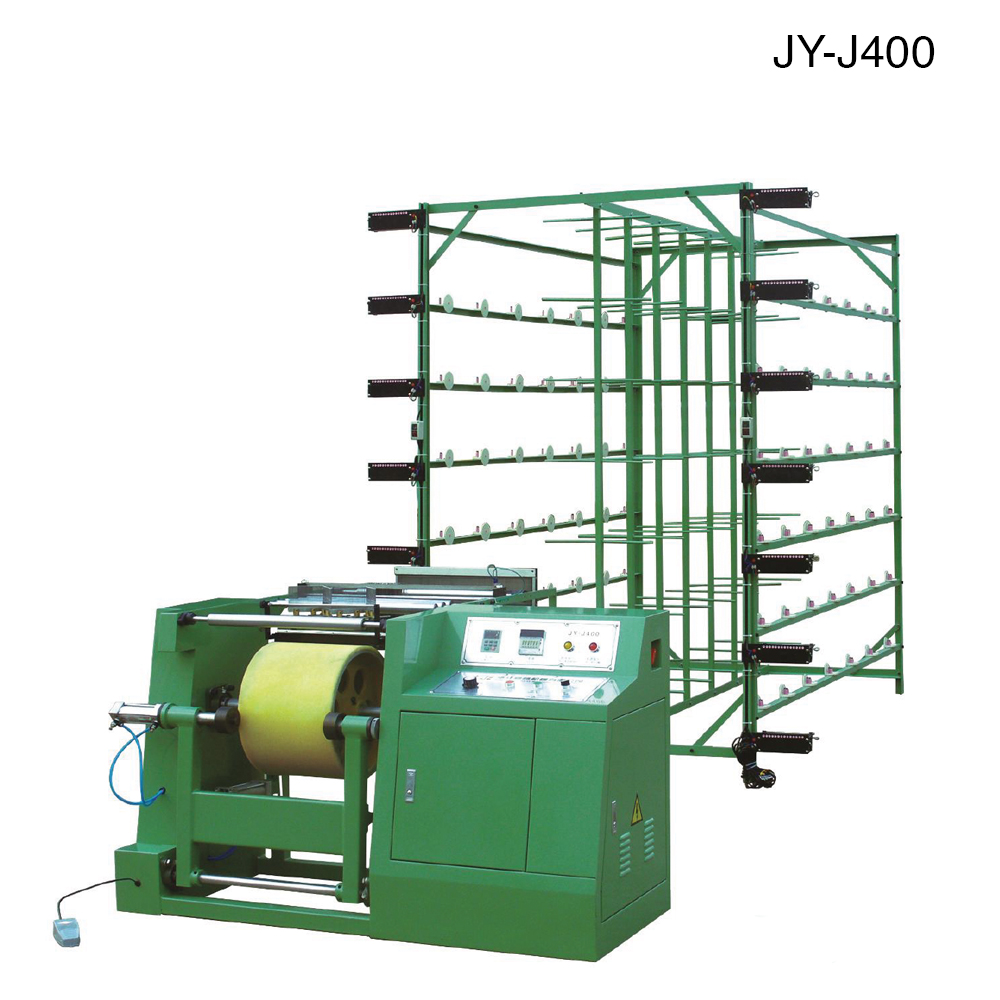

• Q) What is a Warping Machines ?

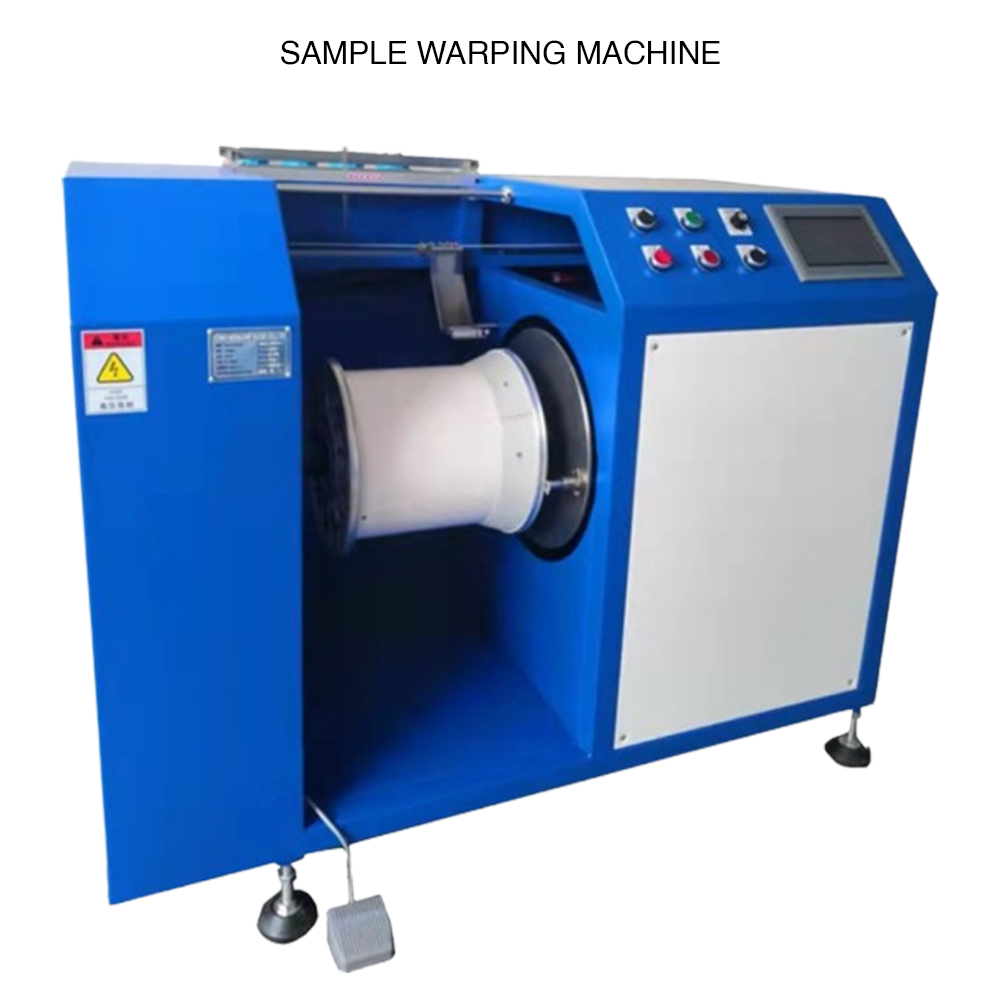

• Q) What is the difference between warping and sample warping ?
